ALUMINUM TRUCK DOCK PLATES
ZOOM IN
ALUMINUM TRUCK DOCK PLATES
Alternative Views
  • ALUMINUM TRUCK DOCK PLATES
  • ALUMINUM TRUCK DOCK PLATES

Alternative Views
  • alt view name
  • alt view name

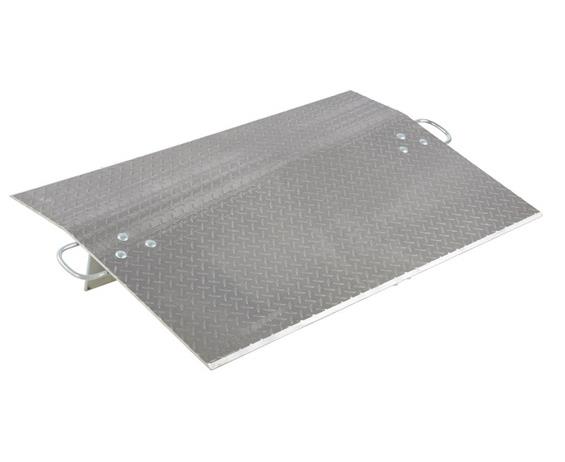

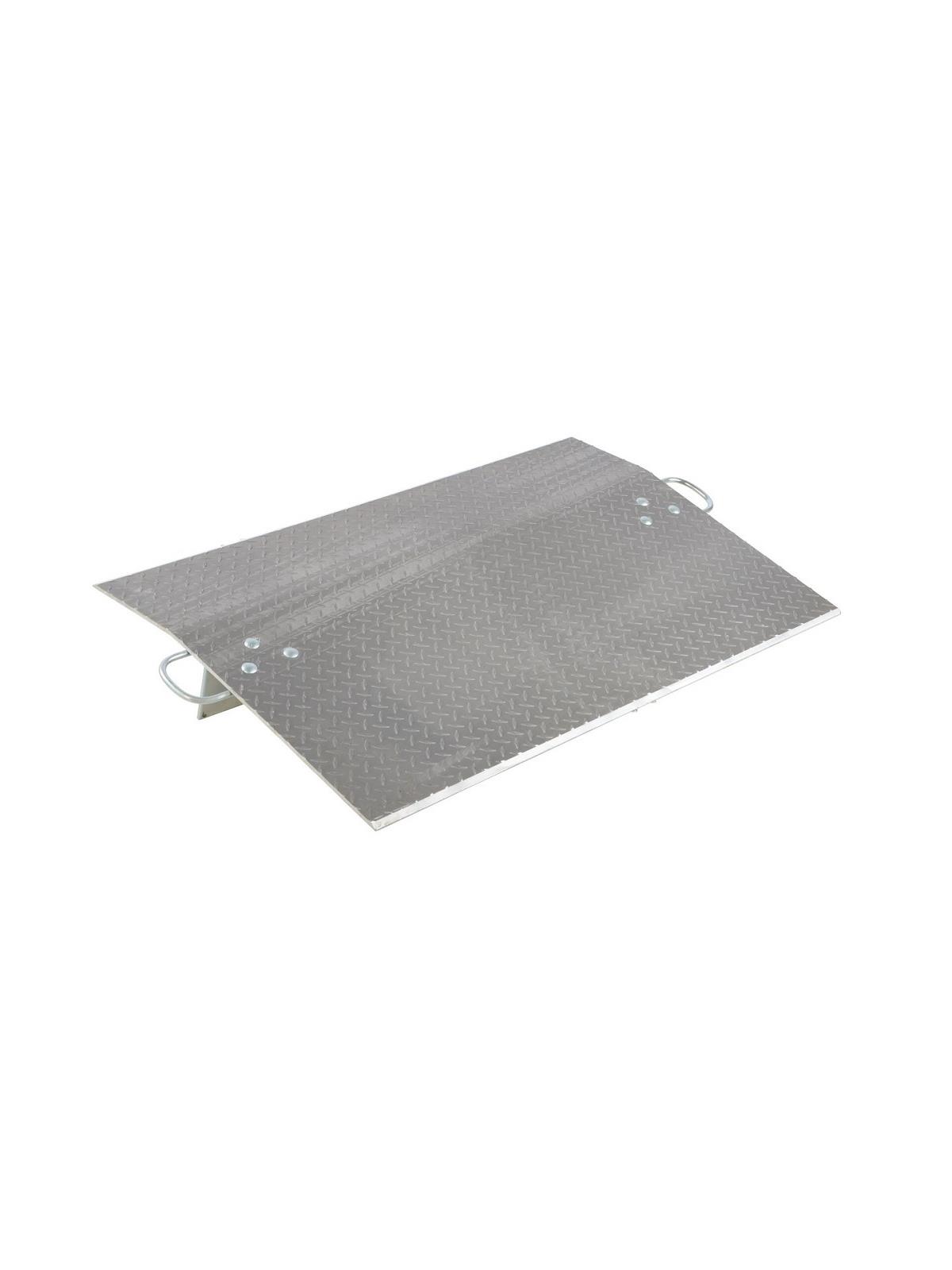

Aluminum Truck Dock Plates

  • The convenient, safe and easy way to access loading docks from trucks.
  • 11° bend in the plate allows edges to be flush at dock and truck for smooth material transfer.

Lightweight and easily portable by just one person. Checker surface ensures skid-free safe traction. HSDP deck surface can be ordered with a smooth surface with grip tape instead of the checker surface. Beveled edges reduce tire wear and excessive equipment jarring. Locking legs secure the plate for safe loading and unloading. Complete with carrying handles attached to the locking legs. Available in steel - call for pricing. FOB Shipping Point.

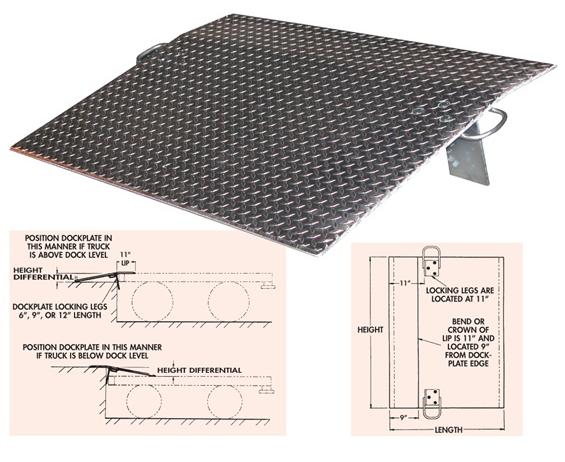

SELECTING YOUR DOCKPLATE
1) Rolling Load Capacity
VEHICLE % of Total Load
2 Wheel Handtrucks 100
4 Wheel Platform Trucks 50
Pallet Trucks 66

2) Height Difference
    Measure the difference in height between
    the truck and loading dock.

3) Determine Your Model
     DO NOT exceed height difference
     or select too low of capacity.


See Related Items tab for Options for Aluminum Truck Dock Plates.

Due to tariffs and market conditions, pricing subject to change.

There are related items or accessories for this product. Please see the Related Items tab below.


Filter By


Product No. Thickness
of Tread
Plate 		Width Length Hgt Diff. Cap.
(lbs.) 		Wt. (lbs.) Ship Via Qty Price Ea.
HE-3024 3/8" 30" 24" 3" 3000 35 UPS $352.97
$332.51
HE-3030 3/8" 30" 30" 4" 2300 40 UPS $419.99
$395.64
HE-3036 3/8" 30" 36" 5" 1800 49 UPS $464.97
$438.02
HE-3048 3/8" 30" 48" 7" 1400 59 UPS $552.65
$520.61
HE-3624 3/8" 36" 24" 3" 3600 45 UPS $435.16
$409.93
HE-3630 3/8" 36" 30" 4" 3000 55 UPS $587.31
$553.27
HE-3636 3/8" 36" 36" 5" 2500 71 UPS $586.00
$552.03
HE-3648 3/8" 36" 48" 7" 1900 88 UPS $680.19
$640.76
HE-4824 3/8" 48" 24" 3" 5200 48 UPS $484.60
$456.51
HE-4830 3/8" 48" 30" 4" 4100 63 UPS $576.80
$543.37
HE-4836 3/8" 48" 36" 5" 3500 71 UPS $782.68
$737.31
HE-4842 3/8" 48" 42" 6" 3000 81 - $792.70
$746.74
HE-4848 3/8" 48" 48" 7" 2600 91 - $1,054.10
$992.99
HE-4860 3/8" 48" 60" 9" 1800 112 - $1,005.30
$947.02
HE-6024 3/8" 60" 24" 3" 5700 60 UPS $552.64
$520.60
HE-6030 3/8" 60" 30" 4" 4600 69 - $663.31
$624.86
HE-6036 3/8" 60" 36" 5" 4100 75 - $865.88
$815.69
HE-6042 3/8" 60" 42" 6" 3500 107 - $886.17
$834.80
HE-6048 3/8" 60" 48" 7" 2900 119 - $974.97
$918.45
HE-6060 3/8" 60" 60" 9" 2000 136 - $1,169.85
$1,102.03
HE-7224 3/8" 72" 24" 3" 6500 84 - $677.30
$638.03
HE-7230 3/8" 72" 30" 4" 5400 92 - $771.77
$727.03
HE-7236 3/8" 72" 36" 5" 4300 100 - $979.00
$922.25
HE-7248 3/8" 72" 48" 7" 3400 138 - $1,254.22
$1,181.51
HEH-3024 1/2" 30" 24" 3" 5200 42 UPS $403.77
$380.37
HEH-3030 1/2" 30" 30" 4" 4100 50 UPS $507.45
$478.03
HEH-3036 1/2" 30" 36" 5" 3500 61 UPS $574.19
$540.90
HEH-3048 1/2" 30" 48" 7" 2600 74 UPS $740.19
$697.28
HEH-3624 1/2" 36" 24" 3" 6200 49 UPS $473.07
$445.64
HEH-3630 1/2" 36" 30" 4" 5100 60 UPS $553.84
$521.73
HEH-3636 1/2" 36" 36" 5" 4300 71 UPS $656.57
$618.51
HEH-3648 1/2" 36" 48" 7" 3000 89 UPS $995.40
$937.70
HEH-4824 1/2" 48" 24" 3" 8200 55 UPS $626.37
$590.06
HEH-4830 1/2" 48" 30" 4" 6300 73 - $732.60
$690.14
HEH-4836 1/2" 48" 36" 5" 5300 89 - $845.76
$796.73
HEH-4842 1/2" 48" 42" 6" 4300 103 - $1,025.62
$966.16
HEH-4848 1/2" 48" 48" 7" 3800 118 - $1,139.96
$1,073.87
HEH-4860 1/2" 48" 60" 9" 2900 153 - $1,442.76
$1,359.12
HEH-6024 1/2" 60" 24" 3" 10000 75 UPS $780.07
$734.85
HEH-6030 1/2" 60" 30" 4" 7800 88 - $891.77
$840.08
HEH-6036 1/2" 60" 36" 5" 6600 109 - $1,029.22
$969.56
HEH-6042 1/2" 60" 42" 6" 5500 127 - $1,477.45
$1,391.80
HEH-6048 1/2" 60" 48" 7" 4800 145 - $1,351.14
$1,272.82
HEH-6060 1/2" 60" 60" 9" 3700 177 - $1,717.05
$1,617.51
HEH-7224 1/2" 72" 24" 3" 11900 87 - $833.02
$784.73
HEH-7230 1/2" 72" 30" 4" 9500 106 - $1,073.05
$1,010.85
HEH-7236 1/2" 72" 36" 5" 7800 129 - $1,233.30
$1,161.80
HEH-7248 1/2" 72" 48" 7" 5900 173 - $1,681.13
$1,583.67
