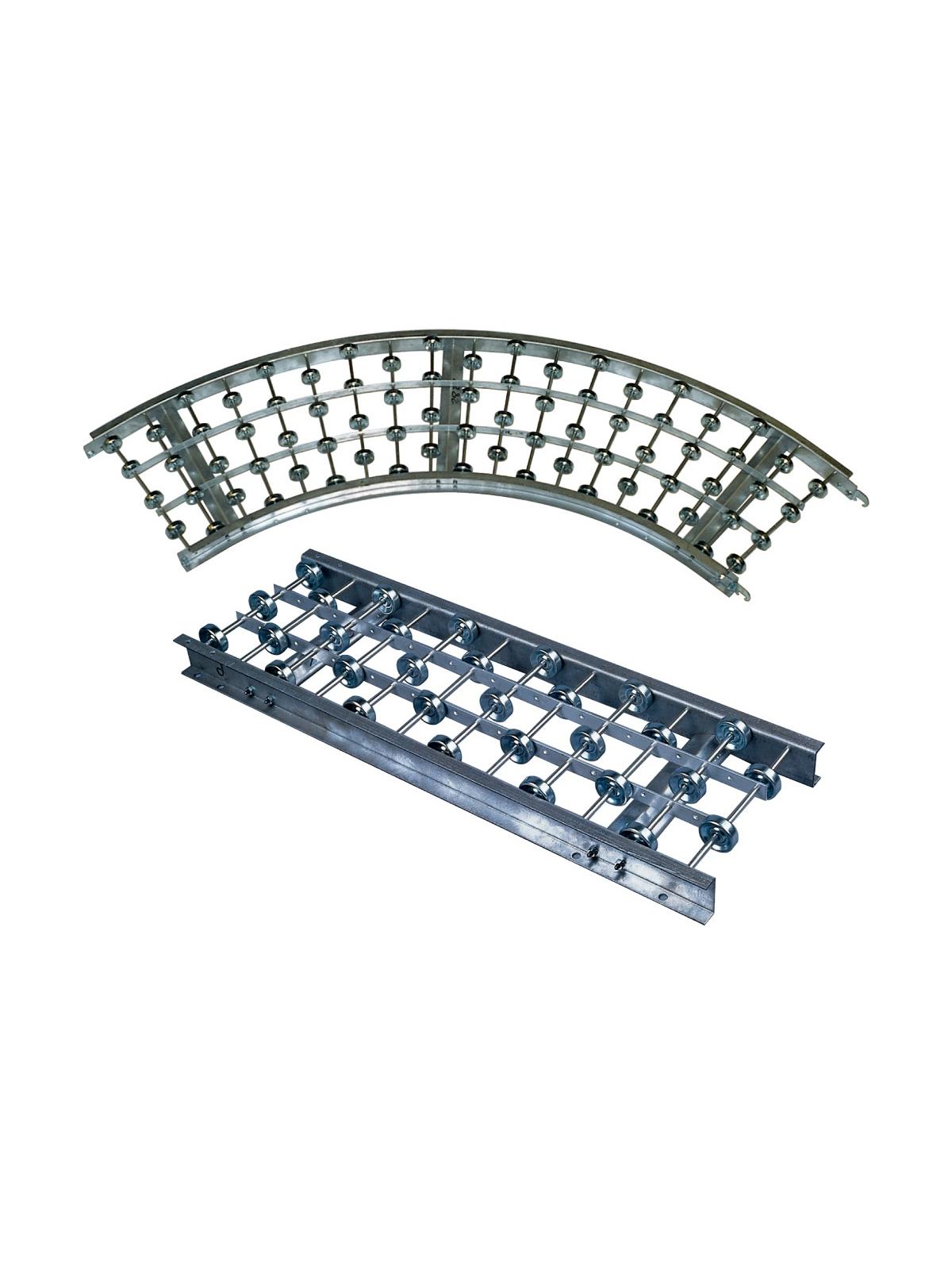

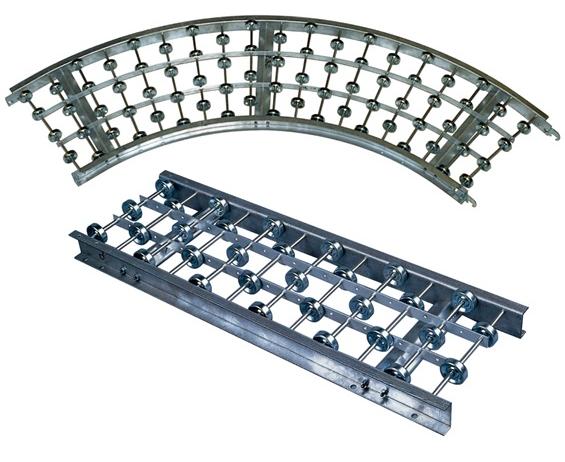

SKATE WHEEL CONVEYORS
ZOOM IN
SKATE WHEEL CONVEYORS

Alternative Views
  • There are no alternate images available for this product.


Skate Wheel Conveyors

  • Transport boxes, cartons, packages, efficiently and speedily.
  • Perfect for unloading trucks, assembly line work or moving material from one point to another.

Strong and long-lasting, built for minimum weight and maximum strength. Aluminum conveyors have 2-1/2" x 1" x 1/8" aluminum channel frames, while steel ones have 2-1/2" x 1" x 12 gauge galvanized frames. Wheels are zinc plated to resist corrosion. Available in straight or curved sections. 3' inside radius on curved sections. FOB Shipping Point.

Surcharge may apply.



Filter By


Product No. Style Length Width Wheels
Per Foot 		Wt. (lbs.) Qty Price Ea.
H12-AW-06-5 Aluminum - Straight 5' 12" 6 18 $205.62
$193.70
H12-AW-10-5 Aluminum - Straight 5' 12" 10 21 $238.74
$224.90
H12-AW-12-5 Aluminum - Straight 5' 12" 12 22 $262.74
$247.51
H12-AW-16-5 Aluminum - Straight 5' 12" 16 25 $293.57
$276.56
H18-AW-12-5 Aluminum - Straight 5' 18" 12 25 $274.16
$258.27
H18-AW-14-5 Aluminum - Straight 5' 18" 14 26 $305.00
$287.32
H18-AW-16-5 Aluminum - Straight 5' 18" 16 28 $326.71
$307.77
H18-AW-18-5 Aluminum - Straight 5' 18" 18 29 $347.27
$327.14
H24-AW-18-5 Aluminum - Straight 5' 24" 18 32 $374.68
$352.96
H24-AW-20-5 Aluminum - Straight 5' 24" 20 34 $394.10
$371.25
H24-AW-24-5 Aluminum - Straight 5' 24" 24 36 $437.51
$412.15
H24-AW-28-5 Aluminum - Straight 5' 24" 28 39 $468.36
$441.21
H12-AW-06-10 Aluminum - Straight 10' 12" 6 33 $342.70
$322.83
H12-AW-10-10 Aluminum - Straight 10' 12" 10 38 $408.96
$385.25
H12-AW-12-10 Aluminum - Straight 10' 12" 12 40 $447.79
$421.83
H12-AW-16-10 Aluminum - Straight 10' 12" 16 45 $517.47
$487.47
H18-AW-12-10 Aluminum - Straight 10' 18" 12 46 $478.64
$450.89
H18-AW-14-10 Aluminum - Straight 10' 18" 14 48 $548.31
$516.53
H18-AW-16-10 Aluminum - Straight 10' 18" 16 51 $590.57
$556.34
H18-AW-18-10 Aluminum - Straight 10' 18" 18 53 $620.28
$584.32
H24-AW-18-10 Aluminum - Straight 10' 24" 18 59 $660.27
$621.99
H24-AW-20-10 Aluminum - Straight 10' 24" 20 61 $718.51
$676.86
H24-AW-24-10 Aluminum - Straight 10' 24" 24 66 $779.07
$733.90
H24-AW-28-10 Aluminum - Straight 10' 24" 28 71 $847.60
$798.47
H12-SW-06-5 Steel - Straight 5' 12" 6 30 $202.19
$190.47
H12-SW-10-5 Steel - Straight 5' 12" 10 34 $231.90
$218.45
H12-SW-12-5 Steel - Straight 5' 12" 12 36 $249.04
$234.60
H12-SW-16-5 Steel - Straight 5' 12" 16 40 $283.30
$266.87
H18-SW-12-5 Steel - Straight 5' 18" 12 39 $271.88
$256.12
H18-SW-14-5 Steel - Straight 5' 18" 14 41 $283.30
$266.87
H18-SW-16-5 Steel - Straight 5' 18" 16 43 $306.14
$288.40
H18-SW-18-5 Steel - Straight 5' 18" 18 45 $322.14
$303.47
H24-SW-18-5 Steel - Straight 5' 24" 18 48 $365.54
$344.35
H24-SW-20-5 Steel - Straight 5' 24" 20 50 $381.54
$359.43
H24-SW-24-5 Steel - Straight 5' 24" 24 54 $420.37
$396.00
H24-SW-28-5 Steel - Straight 5' 24" 28 58 $458.07
$431.51
H12-SW-06-10 Steel - Straight 10' 12" 6 55 $325.56
$306.69
H12-SW-10-10 Steel - Straight 10' 12" 10 62 $386.11
$363.73
H12-SW-12-10 Steel - Straight 10' 12" 12 65 $416.94
$392.77
H12-SW-16-10 Steel - Straight 10' 12" 16 72 $478.64
$450.89
H18-SW-12-10 Steel - Straight 10' 18" 12 71 $462.64
$435.82
H18-SW-14-10 Steel - Straight 10' 18" 14 75 $483.20
$455.19
H18-SW-16-10 Steel - Straight 10' 18" 16 78 $534.60
$503.61
H18-SW-18-10 Steel - Straight 10' 18" 18 82 $573.45
$540.21
H24-SW-18-10 Steel - Straight 10' 24" 18 88 $654.54
$616.60
H24-SW-20-10 Steel - Straight 10' 24" 20 91 $683.11
$643.51
H24-SW-24-10 Steel - Straight 10' 24" 24 98 $757.36
$713.45
H24-SW-28-10 Steel - Straight 10' 24" 28 106 $825.90
$778.02
H12-AW-10-90 Aluminum - 90° Curve - 12" 10 22 $391.82
$369.11
H18-AW-16-90 Aluminum - 90° Curve - 18" 16 27 $454.65
$428.29
H24-AW-20-90 Aluminum - 90° Curve - 24" 20 33 $584.87
$550.96
H12-SW-10-90 Steel - 90° Curve - 12" 10 24 $386.11
$363.73
H18-SW-16-90 Steel - 90° Curve - 18" 16 42 $469.50
$442.28
H24-SW-20-90 Steel - 90° Curve - 24" 20 50 $611.14
$575.72
H12-AW-10-45 Aluminum - 45° Curve - 12" 10 11 $237.60
$223.83
H18-AW-16-45 Aluminum - 45° Curve - 18" 16 15 $290.16
$273.34
H24-AW-20-45 Aluminum - 45° Curve - 24" 20 18 $402.10
$378.79
H12-SW-10-45 Steel - 45° Curve - 12" 10 17 $236.47
$222.76
H18-SW-16-45 Steel - 45° Curve - 18" 16 22 $297.00
$279.79
H24-SW-20-45 Steel - 45° Curve - 24" 20 26 $419.24
$394.93
