VFD CONTROLLED DUAL SPEED ELECTRIC CHAIN HOISTS
ZOOM IN

Alternative Views
  • There are no alternate images available for this product.

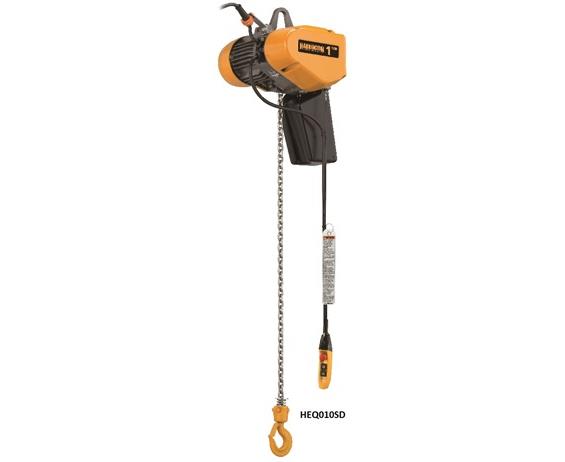

VFD Controlled Dual Speed Electric Chain Hoists

  • Ergonomically designed for easy installation and operation.
  • IP55 rated for indoor/outdoor use.
  • 5 year brake warranty.

The EQ/SEQ dual speed electric chain hoists are loaded with cutting-edge features such as a no-load high-speed function that automatically increases hoist speed up to 130 percent when the load is less than 30 percent of working load limit. Both 3-phase EQ and 1-phase SEQ come standard as dual speed via variable frequency drive (VFD), a true revolution for single phase hoist controls. Both hoists have ASME H4 classification, IP55 rated enclosure and IP65 pendant. 208-230V/460-3-50/60 or 380-460V-3-50/60 power supply on the EQ, and 115/230V-1-60 (reconnectable) power supply on the SEQ. Optional suspension bar available for low headroom or enclosed track trolley applications. Push/Pull, geared or motorized trolleys available. Call for details. FOB Shipping Point.



Product No. Description Cap.
(Tons)
Std.
Lift
Lift Speed
FPM-High
Lift Speed
FPM-Low
Lift Speed
FPM-No Load
High Speed
Pendant
Cord
Min.
Headroom
Top Hook
Min.
Headroom
Susp. Bar
Wt. (lbs.) Qty Price Ea.
HEQ001SD EQ 3-Phase 1/8 10' 56 9.3 72 8.2' 17.3 15.6 71 $4,309.37
$4,059.56
HEQ003SD EQ 3-Phase 1/4 10' 33 5.5 43 8.2' 17.3 15.6 71 $5,248.96
$4,944.67
HEQ005SD EQ 3-Phase 1/2 10' 25 4.2 32 8.2' 18.0 16.1 75 $5,358.48
$5,047.85
HEQ010SD EQ 3-Phase 1 10' 23 3.8 30 8.2' 20.7 18.3 97 $5,966.02
$5,620.16
HSEQ001SD SEQ 1-Phase 1/8 10' 56 9.3 72 8.2' 17.3 15.6 71 $4,194.59
$3,951.43
HSEQ003SD SEQ 1-Phase 1/4 10' 33 5.5 43 8.2' 17.3 15.6 71 $4,424.16
$4,167.69
HSEQ005SD SEQ 1-Phase 1/2 10' 25 4.2 32 8.2' 18.0 16.1 75 $4,694.39
$4,422.25
HSEQ010SD SEQ 1-Phase 1 10' 17 3.9 22 8.2' 20.7 18.3 97 $5,236.60
$4,933.03
